RAVEN-EYEFlow Meter Demo Installation




The RAVEN-EYE® has been designed for flow measurement in municipal wastewater treatment plants, and storm water sewers and easily adapts to a wide range of applications. Being positioned above the water surface, the RAVEN-EYE® avoids thereby all problems (grease, fouling, corrosive liquids) associated with traditional flow meters where the sensor is immersed in the fluid.

Maintenance is completely removed as the sensor is not in contact with the flow. The RAVEN-EYE® builds on years of experience measuring sewer flows, the sensor is totally sealed, no joints, seals, screws or washers are used. It’s rated to IP68 which means it withstands surcharge events and aggressive atmospheres. Internal sensors monitor and report the condition or “health” of the system (auto-diagnostic system).

The combination of these benefits and virtually zero maintenance requirements, give the user a very low “Cost of Ownership”.

Installation and system demo can be done in a day .  The flexibility of the system and the wide range of mounting equipment make it really easy to install the sensor without specific engineering works and is ideal for retrofitting. The RAVEN-EYE® can be mounted in an existing manhole or under a bridge avoiding personnel to have contact with the flow.

If you are interested , we can conduct product presentation and demo installation at your most convenient time.   Contact Us.

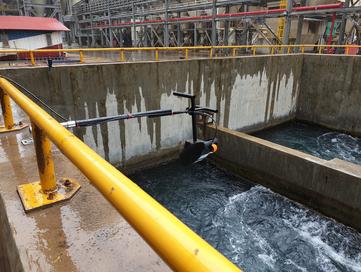

BRAAMD Engineering and  Technical Team recently conducted a Demo installation of the RAVEN-EYE® flow meter at coal-fired power plant.    The RAVEN-EYE® is the newest non-contact RADAR area/ velocity flow meter for open channel flow measurements from Flow-Tronic. It combines state of the art non-contact radar measuring technology which measures flow from above the water surface with easy integration into existing SCADA or telemetry systems.
